✈️ Black Box in Airplanes: Everything You Need to Know
When we hear about an airplane crash or accident, one term that almost always comes up is the “Black Box.” Despite the name, this crucial device isn't actually black — it's typically bright orange and plays a key role in aviation safety and accident investigation. In this article, we’ll take a deep dive into what a black box is, how it works, why it’s essential, and the technology that powers it.
 |

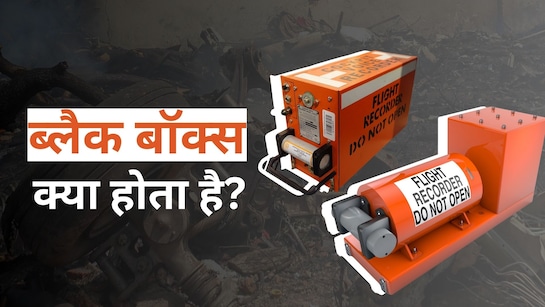

| Black Box |
🔹 What is a Black Box?
In aviation, the term "Black Box" refers to two highly secure recording devices installed in every commercial aircraft:
1. Flight Data Recorder (FDR)
2. Cockpit Voice Recorder (CVR)
Together, these devices capture critical flight information and cockpit conversations, helping investigators reconstruct events leading up to any incident.
---
🔹 Why is it Called a Black Box?
Historically, the term “Black Box” comes from the world of electronics where a system's inner workings were hidden or unknown. The term was applied to flight recorders as well because their internal components and functions were not easily accessible to the average person.
Ironically, aviation black boxes are painted bright orange (with reflective strips) so they can be easily located among debris after a crash.
---
🔹 Components of the Black Box
Let’s break down the two components:
1. ✍️ Cockpit Voice Recorder (CVR)
Records audio from the cockpit:
pilot conversations, radio communication with ATC, alarms, and ambient sounds.
Stores up to 2 hours of audio (older models stored 30 minutes).
Helps determine the human factors involved in an incident — confusion, communication failures, or last-minute decisions.
2. 📊 Flight Data Recorder (FDR)
Records flight parameters like:
Altitude
Airspeed
Heading
Engine performance
Flap positions
Autopilot status
Stores 25 hours of flight data in a continuous loop.
Helps understand the mechanical or system-related aspects of an incident.
---
🔹 How Does a Black Box Work?
A Black Box is a rugged electronic device designed to withstand extreme conditions. Here's how it works:
📥 Data Collection:
The black box continuously receives data from aircraft sensors and microphones.
💾 Data Storage:
Uses solid-state memory (flash memory chips) for durability.
Automatically overwrites the oldest data once capacity is reached.
💡 Emergency Locator Beacon:
Includes a Underwater Locator Beacon (ULB) that emits signals for up to 30 days if the recorder ends up underwater.
---
🔹 How Durable is the Black Box?
Black boxes are built to survive extreme conditions that would destroy most other electronic equipment:
Test Requirement
🔥 Heat Resistance Survives up to 1,100°C (2,012°F) for 60 minutes
🌊 Water Pressure Withstands pressure at 20,000 ft underwater
💥 Impact Shock Can endure 3,400 g-force (3,400 times gravity)
🧊 Freezing/Thawing Tolerates extreme cold and rapid temperature changes
The outer casing is made from titanium or stainless steel, and internal memory is encased in thermal insulation and shockproof material.
---
🔹 Where is the Black Box Located in an Airplane?
Contrary to popular belief, the black box is not in the cockpit. It’s usually located in the tail section of the aircraft.
Why?
The tail section is statistically more likely to survive a crash intact.
It provides better protection for the device in case of impact.
---
🔹 Role of the Black Box in Crash Investigations
The black box plays a critical role in understanding what went wrong in an accident:
1. Data Retrieval – Investigators recover the black box and extract the data using specialized software.
2. Timeline Reconstruction – They reconstruct the flight’s last moments second by second.
3. Root Cause Analysis – Helps determine if the crash was due to pilot error, mechanical failure, weather, or sabotage.
4. Safety Improvements – Lessons learned are used to improve future aircraft design and flight protocols.
Famous investigations where the black box was instrumental include:
Air France Flight 447 (2009) – Took 2 years to recover the black box from the Atlantic Ocean.
Malaysia Airlines Flight MH370 (2014) – The search for the black box continues to this day.
---
🔹 How Long Does it Take to Analyze a Black Box?
Initial analysis can begin within hours of recovery.
Complete analysis may take weeks or even months, especially if the device is damaged or submerged.
Often, a transcript of the last few minutes in the cockpit is published in official reports.
---
🔹 Can a Black Box Be Hacked or Tampered With?
Black boxes are heavily encrypted and protected by multiple security layers.
Tampering is extremely difficult.
Any attempt to erase or alter data would likely destroy the device.
Only specialized aviation authorities (like NTSB, DGCA, etc.) can access the data with certified tools.
---
🔹 The Future of Black Boxes: Cloud-Based Recording?
With technological advances, there are proposals to:
Stream black box data to the cloud in real-time.
Store cockpit and flight data on secure servers so it can’t be lost in case of a crash over water or remote areas.
This could have helped in situations like MH370, where the aircraft and its black box are still missing.
---
🔹 Interesting Facts About Black Boxes
First invented by Dr. David Warren in Australia in the 1950s.
Mandatory in all commercial aircraft since the 1960s.
Each black box costs between $10,000–$30,000.
The outer shell is painted “international orange” for visibility.
---
🧭 Conclusion
The black box is one of the most essential components in modern aviation safety. It silently records every flight, and when tragedy strikes, it becomes the most trusted source of truth in uncovering what went wrong. Through each recovery and investigation, black boxes help the aviation industry grow safer, more resilient, and more transparent.
Whether you're a passenger, pilot, or aviation enthusiast — understanding the role of a black box gives you a deeper appreciation of the complexity and safety of air travel.
---
✈️ Fly safe — and now you know what’s quietly working behind the scenes on every flight.
